Rail Insulator

Rail insulator, or Angle Plate is installed between Rail clip and steel rail, it’s used to adjust rail gauge and insulate the rail from the clips. It is most widely used in the SKL Fastening System, the E Clip Fastening System and the Nabla Fastening System.

ASK A PRICE

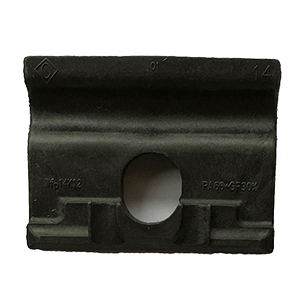

Rail Insulator/ Angle Plate

  • Main Function

    Rail insulator is installed between rail clip and steel rails, it’s used to adjust rail gauge and insulate the rail from tie plates and clips

  • Types

    Vossloh Angle Plate, Pandrol Rail Insulator, and Nabla Insulator, etc

  • Color

    Mainly being black, or others according to ccstomer’s request

  • Material

    Reinforced Nylon

Application for Angle Plate in SKL Rail System

Item Component Types Material
1 Rail Clip SKL1, SKL3, SKL14, SKL21 60Si2MnA
2 Screw Spike Ss25, Ss35, DHS35, Ss8 35K
3 Rail Dowel Sdu9, Sdu25, Sdue S3 HDPE/PA6
4 Angle Plate Wfp14k, Wfp21k PA6+30%GF
5 Rail Pad Zw600, Zw700 EVA/TPU

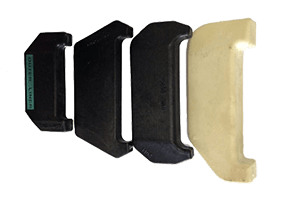

Application for Rail Insulator in E Clip System

Item Component Types Material
1 Rail Clip E1809, E2052, E1804, E2055, E2005, E2006 60Si2MnA
2 Casting Insert According to customer’s drawing QT450-10
3 Rail Insulator According to customer’s drawing PA6+30%GF
4 Rail Pad According to customer’s drawing Rubber

Application for Rail Insulator in Nabla System

Item Component Types Material
1 Nabla Clip Nabla C1, Nabla S1 60Si2MnA
2 T Bolt &Nut &Washer M22, Grade 5.6/8.8 35K
3 Nabla Insulator According to customer’s drawing PA6+30%GF / PA66
4 Rail Pad According to customer’s drawing Rubber
