Tie Plate

The tie plate, which also can be called as base plate or sole plate, is made of either mild steel, cast iron, wrought iron, or malleable steel, it’s interposed between the foot of a flat footed rail and wooden sleeper to distribute the load on a larger area.

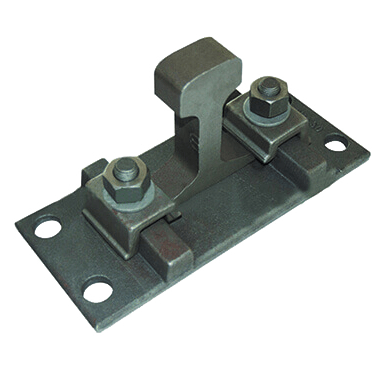

Tie plate

Types of tie plate:
1. The tie plate can be either casting iron or casting steel, depending on the load and the type of rails. Cast iron can be the welded or fabricated type, depending on the customers’ requirements.
2. The double-shoulder type is currently used. Older single-shoulder types were adaptable for various rail widths, with the single shoulder positioned on the outside (field side) of the rails.

Main Functions:
1. Tie Plate plate is used in rail construction to support the rails, and also to take the load of rail and distribute the load to the sleepers;
2. The railroad plate increases bearing area and holds the rail to correct gauge;
3. The railroad plate prevents damage of the sleepers due to rubbing action and holds the spike firmly to the sleepers.

Application for Tie Plate in SKL12 Clip System

Item	Component	Types	Material
1	Rail Clip	SKL12	60Si2MnA
2	Screw Spike	Ss8	35K
3	Rail Dowel	Sdu9, Sdu25	HDPE/PA6
4	Bolt&Nut&Washer	Hs32	35K
5	Rail Pad	According to customer’s drawing	EVA/TPU
6	Tie Plate	UIC54/UIC60	Q235/QT450-10
